Product Details:
|
| Product Name: | Wet Film Thickness Gauges Comb Shape | Range: | 10-950um |
|---|---|---|---|
| Material: | Stinless Steel | ||
| Highlight: | Comb-shaped Wet Film Thickness Gauges,Stainless Steel Wet Film Thickness Gauges,10-950um Wet Film Thickness Gauges |
||
Wet Film Thickness Gauges comb-shaped design
Detailed Product Description
The Wet Film Thickness Gauges are made of a comb-shaped design with precision cut gaps to determine the coating thickness by placing vertically onto a wet coated substrate. it is a corrosion-resistant stainless steel with a hole at the top comer so that a string(not supply)can be attached for hooking
All Wet Film Thickness Gauges come standard with 10 gaps with inscriptions of the thickness at the side of each gap.It is recommended to replace a new gauge if there are chips, crack or uneven at the gap(s)of the gauge
Main Technical Parameters

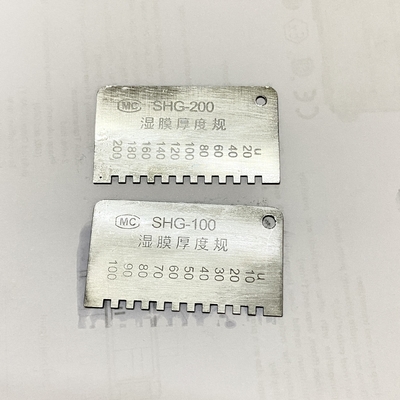

Type: SHG~100 10-100µm(@10µm)

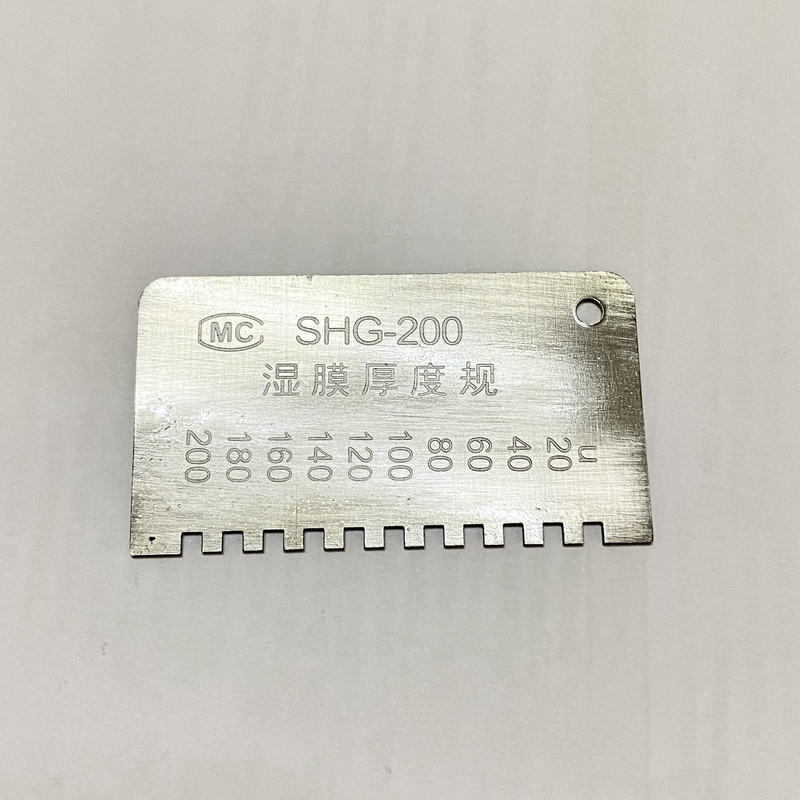

SHG~200 20-200µm(@20µm)
SHG~700 250~700µm(@75µm)
SHG~750 50~950µm(@50µm)
Dimensions(for 1&2):65(L)×36(B)×1.5(T)mm
(for 3&4):65(L)×43(B)×1.5(T)mm
Weight:approx.22g(for 1&2), 33g(for 3&4)
